Descriptions:

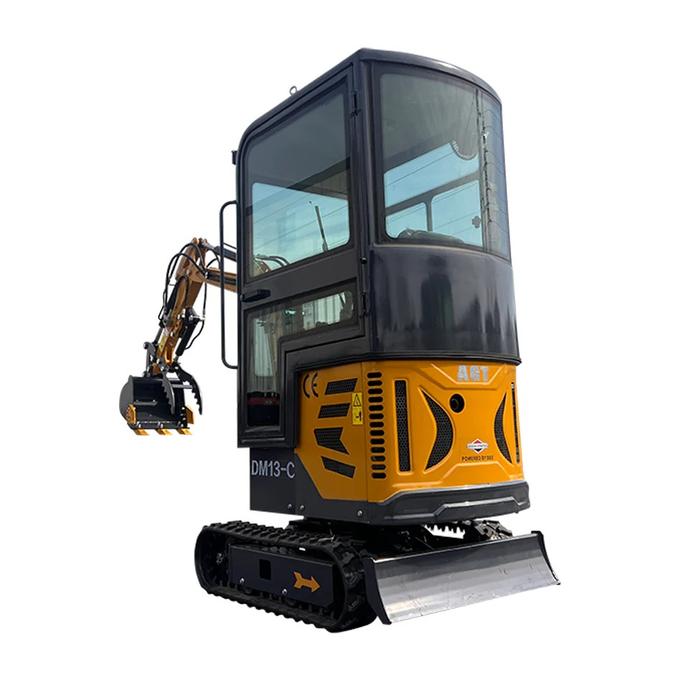

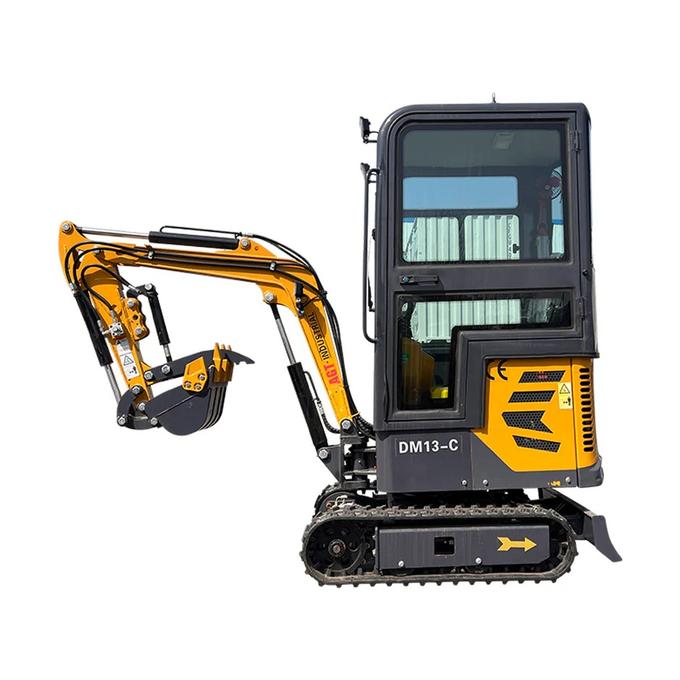

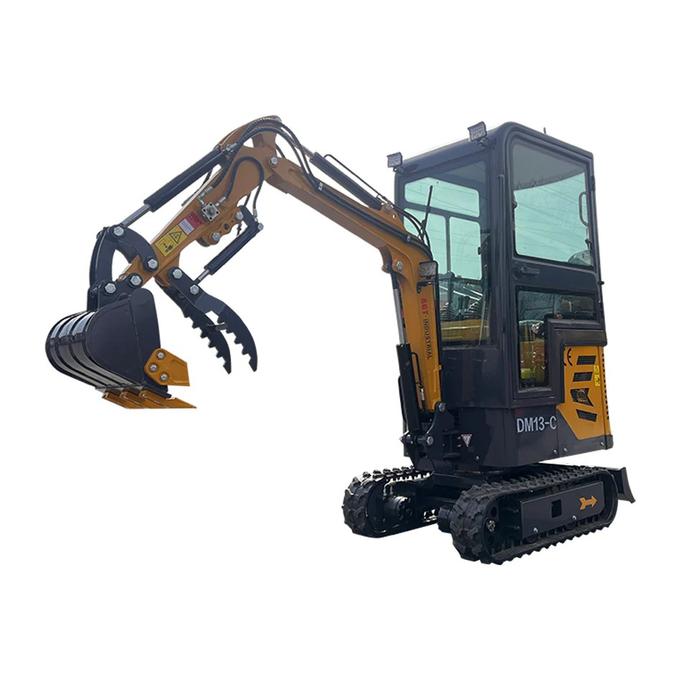

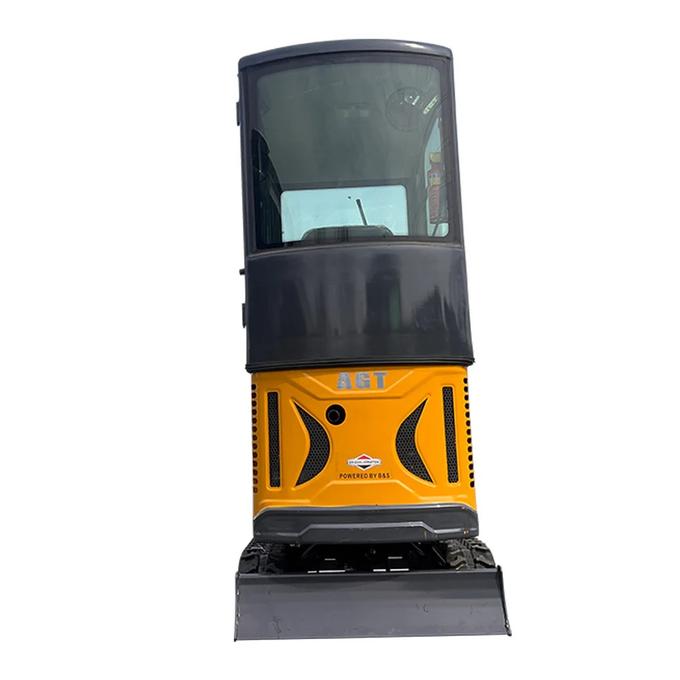

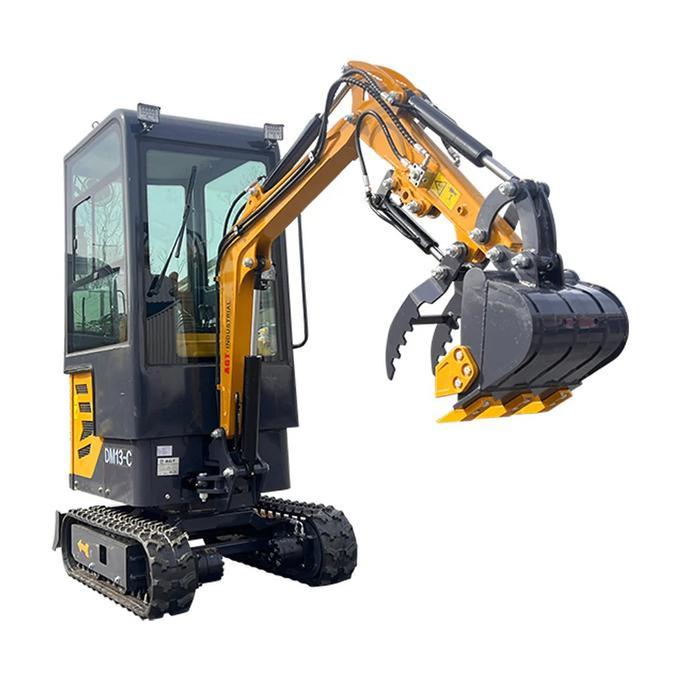

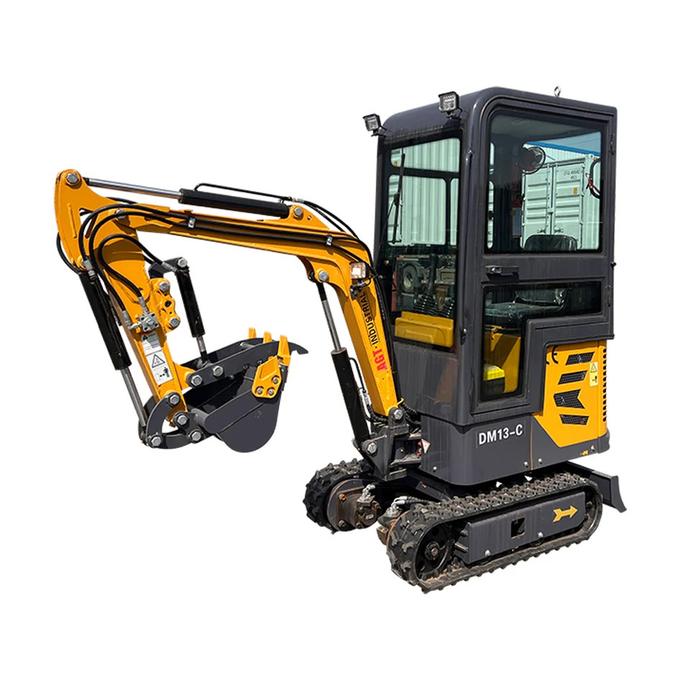

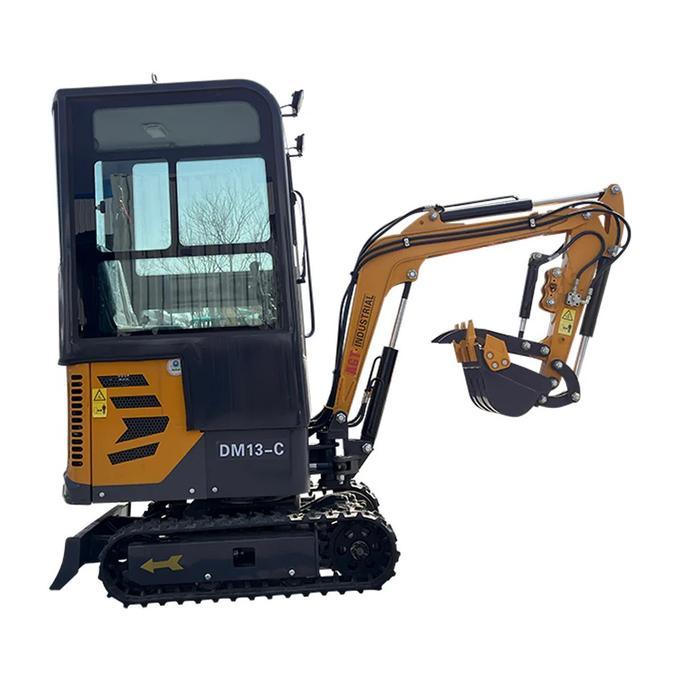

- 1-Ton Mini Excavator: With a compact design, 1-ton operating weight, and a maximum digging depth of 5.52 feet, AGT’s lightweight yet powerful mini excavator is ideal for working in narrow driveways, alleys, backyards, gardens, and other tight spaces.
- Simplified Safety and Maintenance: Our mini excavators increase safety with internal hydraulic hoses to ensure a lower risk of damage. Rear-opening compartments provide easy access to critical components, minimizing downtime and maximizing optimal operational performance.
Technical Data:
| Basic Performance Parameters |
Working Weight(kg) | 940 |
| Bucket capacity(m³) | 0.03 | |
| Travel speed low/high speed(Km/h) | 0-0.2 | |
| Climbing ability(%) | 30 | |
| A Maximum Digging Height(mm) | 2795 | |
| B Maximum Unloading Height(mm) | 1863 | |
| C Maximum Digging Depth(mm) | 1684 | |
| E Max. digging radius(mm) | 3112 | |
| Side Swing | √ | |
| Side Swing Angle (L/R) | 30° | |
| undercarriage expansion | × | |
| Body | J Â Overall Length(mm) | 2738 |
| K Â Overall Width(mm) | 935 | |
| L Â Overall Height(mm) | 2209 | |
| Bulldozer Width/Height | 907/210 | |
| Engine | Engine Brand | B&S |
| Engine Model | 13.5HP | |
| Max. power(Kw) | 9.8 | |
| Max. speed(rpm) | 3600 | |
| Cylinders | 1 | |
| Cooling method | fan cooling | |
| Engine oil change quantity(L) | 1.1 | |
| Fuel Type | Gasoline | |
| Fuel Grade | 92# | |
| Theoretical fuel consumption(L/h) | 0.5-1.2 | |
| Hydraulic system |
Main pump type/model | gear pumps/06 |
| Main pump brand | (Tianjin Xingzou) | |
| Rated set pressure(Mpa) | 16 | |
| Maximum flow rate of main pump(L/min) | 21.6 | |
| Multi-way valve | 8 multi-way valves | |
| Brand of Multi-way valve | (Bei Fang) | |
| Rated Set Pressure(Mpa) | 16 | |
| Hydraulic Linear Motor type | BM6-310 | |
| Linear Motor Brand | (Li Yuan) | |
| Hydraulic Servo Motor type | BM2-250 | |
| Excavator tracks | â–³-Rubber (bandwidth*pitch*number of sections) | 180*72*37 |
| Configuration | Cab | √ |
| Roof | × | |
| Handrail | × | |
| Thumb Clip | √ | |
| Counterweight | × | |
| Tensioning Forms | Mechanical tensioning | |
| Air Conditioning | × | |
| Fuel tank | Fuel tank(L) | 6.6 |
| Hydraulic oil tan（L） | 18 |
